TECHNICIAL SPECIFICATIONS STANDARD EQUIPMENTS OPTIONAL EQUIPMENTS TECHNICAL TABLE CATALOG VIDEO
  • Welded Steel construction
  • High carbon/high chrome, two edged top, and four edged bottom blades
  • Cutting beam vvorking in perfectly sliding, durable teflon slidevvays
  • Easy blade gap adjustment in front
  • Mechanical sheet damping system
NC CONTROLLED BACK GAUGE WITH 750 MM STROKE
SQUARING ARM WITH T-SLOT, STOPPER AND RULER
FOOT PEDAL
CUTTING UNIT COUNTER

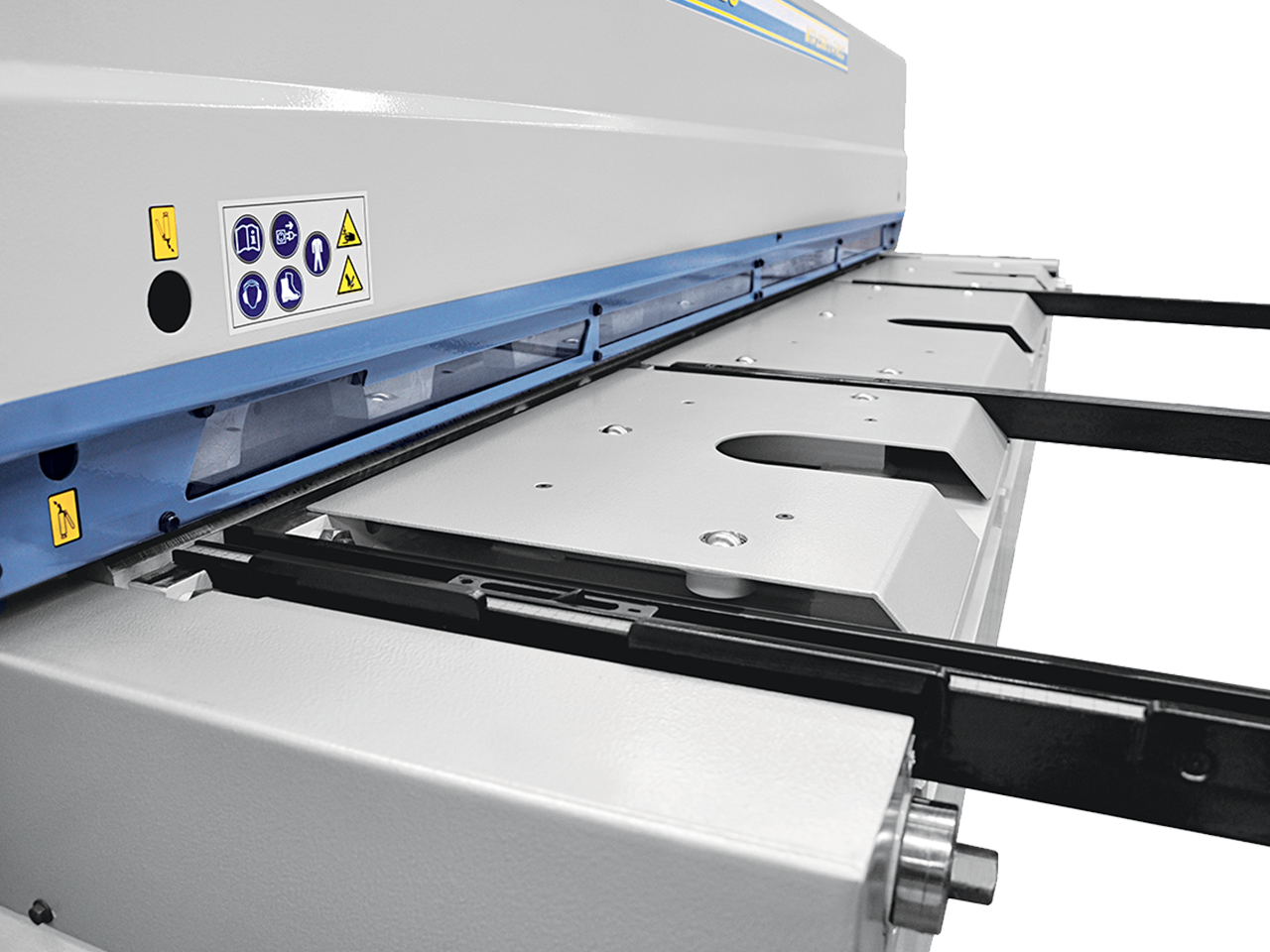

FRONT SHEET HOLDING ARMS
FINGER PROTECTION CAGES
REAR PROTECTION CAGES WITH PHOTOCELL
TABLE WITH BALL TRANSFER
CUTTING LINE ILLUMINATION WITH SHADOW WIRE
NC CONTROLLED BACK GAUGE WITH 1000 MM STROKE

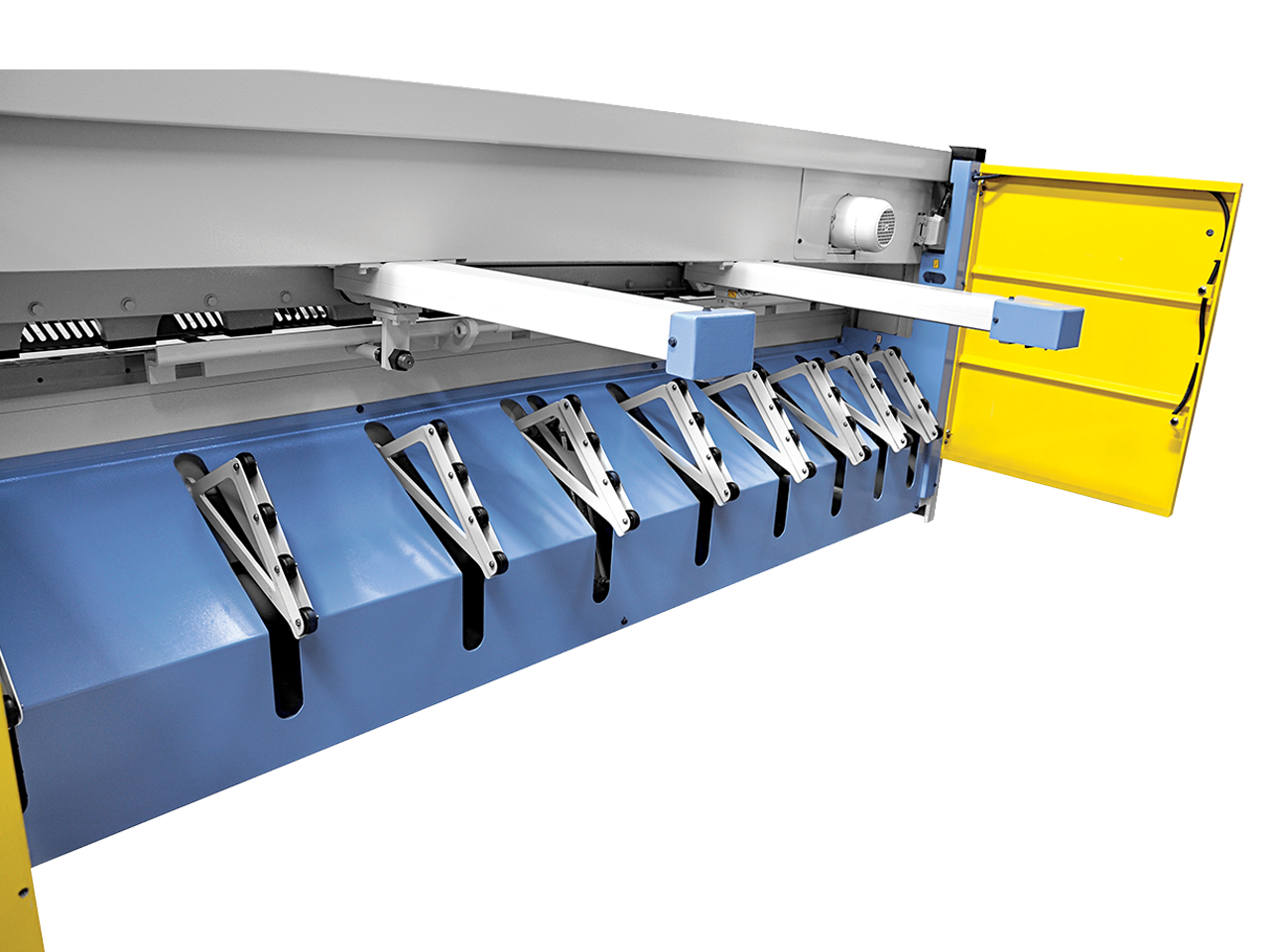

PNEUMATIC SHEET SUPPORT SYSTEM WITH RETURN-TO-REAR FEATURE
REAR PROTECTION CAGES WITH LIGHT BARRIER
0-180 ° ANGULAR CUTTING DEVICE

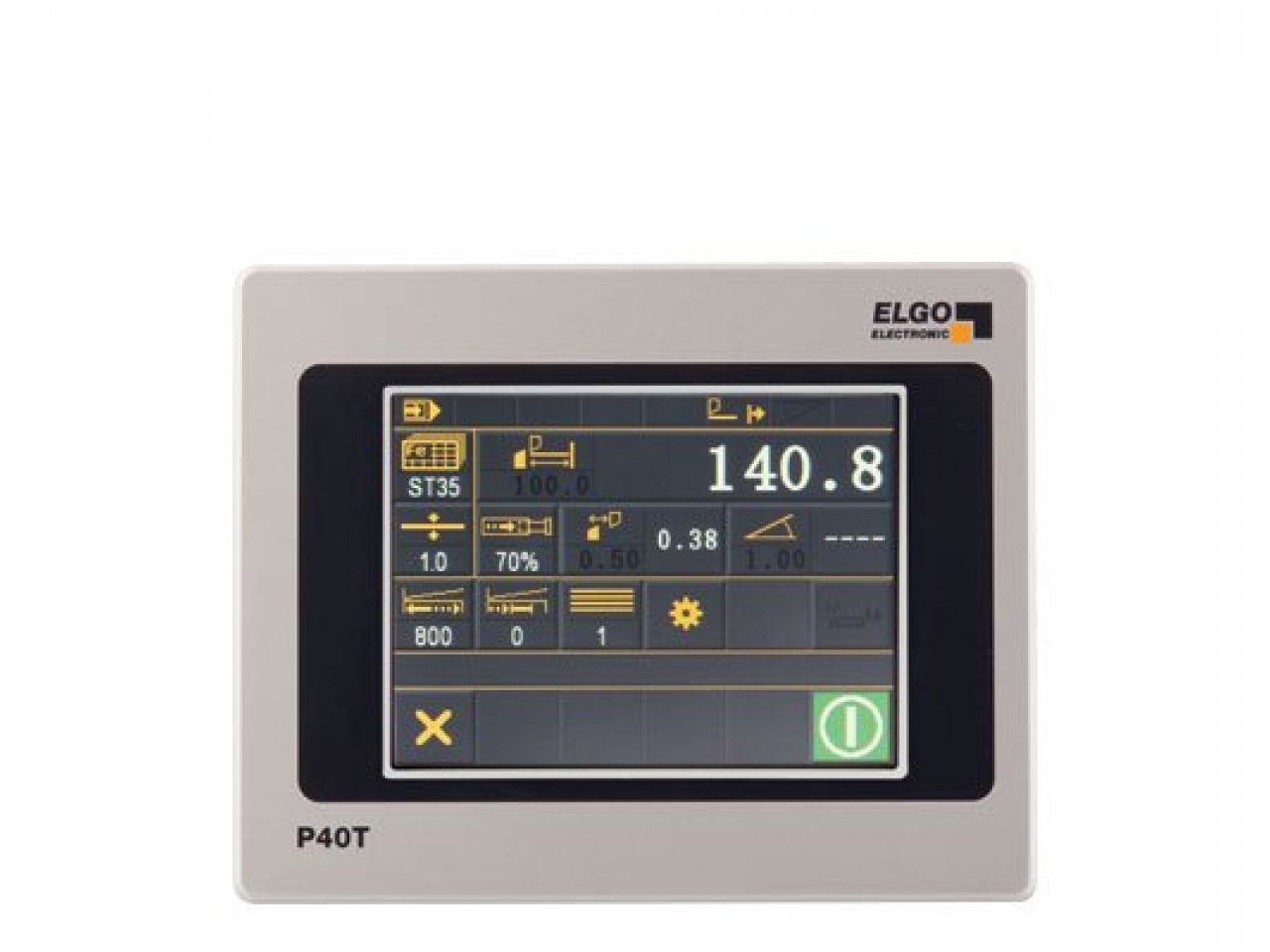

ELGO P40T TOUCH-SCREEN NC CONTROL UNIT
ELGO P40T TOUCH-SCREEN NC CONTROL UNIT
FUJI MONITOUCH TOUCH-SCREEN NC CONTROL UNIT
LONGER SQUARING ARM AND FRONT SHEET HOLDING ARMS UP TO 3000 MM
FRONT OPERATED MANUAL BACK GAUGE WITH BALL SCREW
MODEL
SHEARING CAPACITY
MAX. SHEARING LENGTH
STROKES PER MINUTE
MOTOR POWER
TABLE HEIGHT
TABLE WIDTH
WIDTH
LENGTH
HEIGHT
WEIGHT
  mm mm cuts/min kW mm mm mm mm mm kg
SRGM 1100 6.0 1100 31 7.5 800 455 2250 1750 1400 2000
SRGM 1360 6.0 1360 31 7.5 800 455 2250 2050 1400 2300
SRGM 1560 5.0 1560 31 7.5 800 455 2250 2250 1400 2500
SRGM 2060 4.0 2060 31 7.5 800 455 2250 2700 1400 3000
SRGM 2560 4.0 2560 31 7.5 800 455 2250 3200 1400 3500
SRGM 3060 4.0 3060 31 11.0 800 455 2250 3700 1400 4000
SRGM 3200 4.0 3200 31 11.0 800 455 2250 4300 1400 4400
SRGM 4200 3.0 4200 31 11.0 800 455 2250 5300 1400 5300

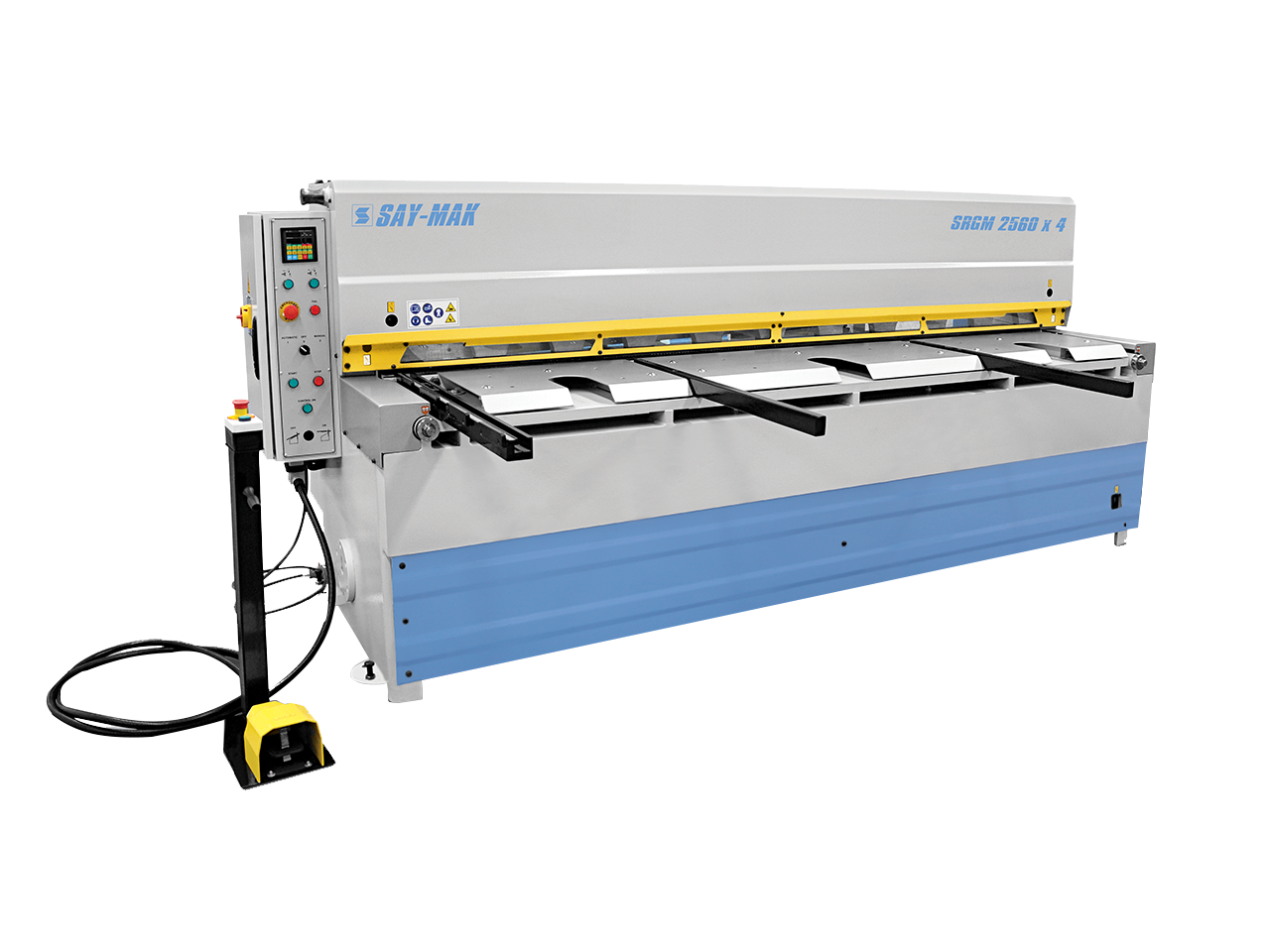

SRGM

DIRECT-GEAR MOTORISED GUILLOTINES
