FORGING MACHINES

SRGM-H

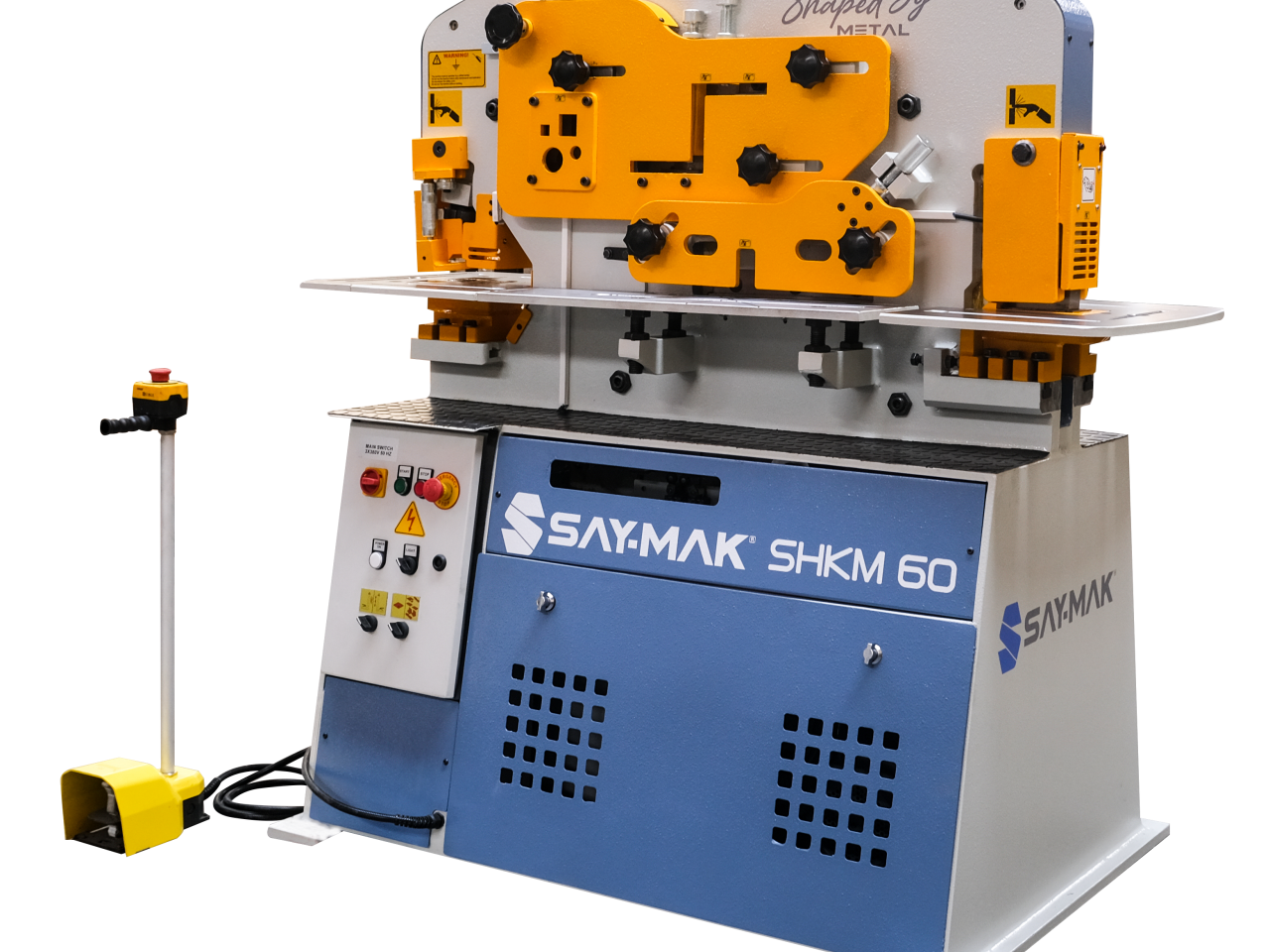

SHKM 55-175

FORGING MACHINES

SHKM 55-175
SHKM 55-175
SHKM 55-175
SHKM 55-175
SHKM 55-175
SHKM 55-175
SHKM 55-175
SHKM 55-175
TECHNICIAL SPECIFICATIONS STANDARD EQUIPMENTS OPTIONAL EQUIPMENTS TECHNICAL TABLE CATALOG VIDEO
  • 2 Separate hydraulic piston and foot pedal to allow 2 operator to work at the same time
  • More productivity with adjustable piston stroke distance
  • Central lubrication system
  • Electrical back gauge
  • Five individual workstation on the machine:

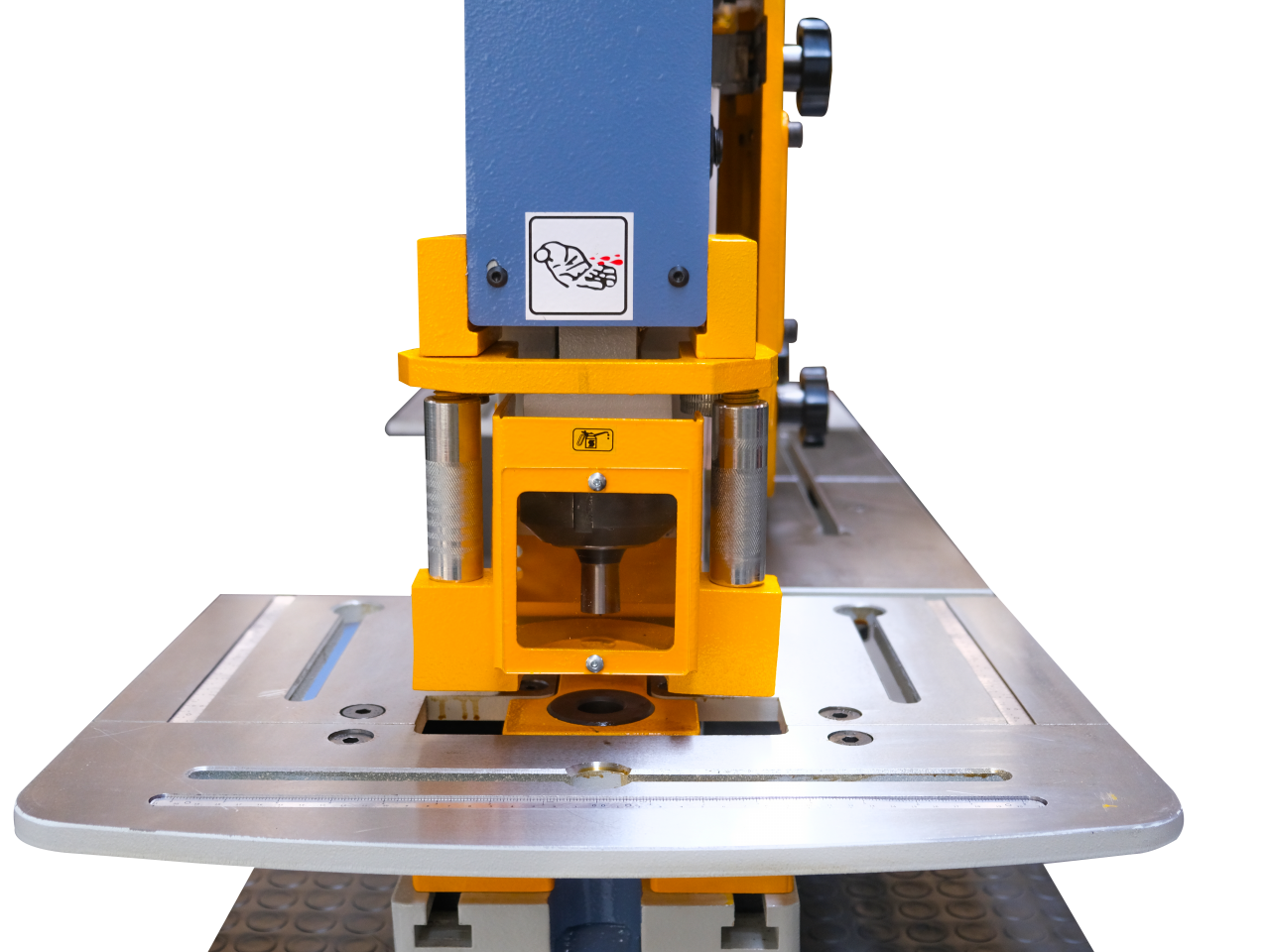

  • Punch and die and standard punching tools
  • Steel solid round and square bar cutting blade set
  • Angle cutting blade set
  • Sheet metal cutting shear
  • U-Notching blade set
MODEL
NUMBER OF PISTON
MOTOR POWER
WIDTH
LENGTH
HEIGHT
WEIGHT
    kW mm mm mm kg
SHKM 55 2 5.5 980 1550 1900 1600
SHKM 65 2 5.5 980 1750 1900 1670
SHKM 85 2 7.5 980 1880 2100 2400
SHKM 115 2 11.0 980 2090 2200 3000
SHKM 175 2 11.0 1200 2780 2300 6200

DIRECT-GEAR MOTORISED GUILLOTINES

SHKM 45-60

View Details SHKM 45-60 - Say-Mak
SHKM 45-60 - Say-Mak

SHKM 55-175

View Details SHKM 55-175 - Say-Mak
SHKM 55-175 - Say-Mak
