FORGING MACHINES

SRGM-H

SPH

FORGING MACHINES

SPH
SPH
SPH
SPH
SPH
SPH
SPH
SPH
TECHNICIAL SPECIFICATIONS STANDARD EQUIPMENTS OPTIONAL EQUIPMENTS TECHNICAL TABLE CATALOG VIDEO
  • Welded steel construction
  • Regular hitting with valve adjustment
  • Pneumatic working system with 2 pistons
  • Hourmeter
  • All dies and sal block are inter-changeable, sal block adjustable to 8-directions
  • Adjustable sal block for operator s working angle
  • Easy and functional automatic lubrication system for front and rear pistons
  • Adjustable foot pedal accordingly to working level and foot protection cover
  • 360 ° adjustable-flanged ram and plexiglass cover

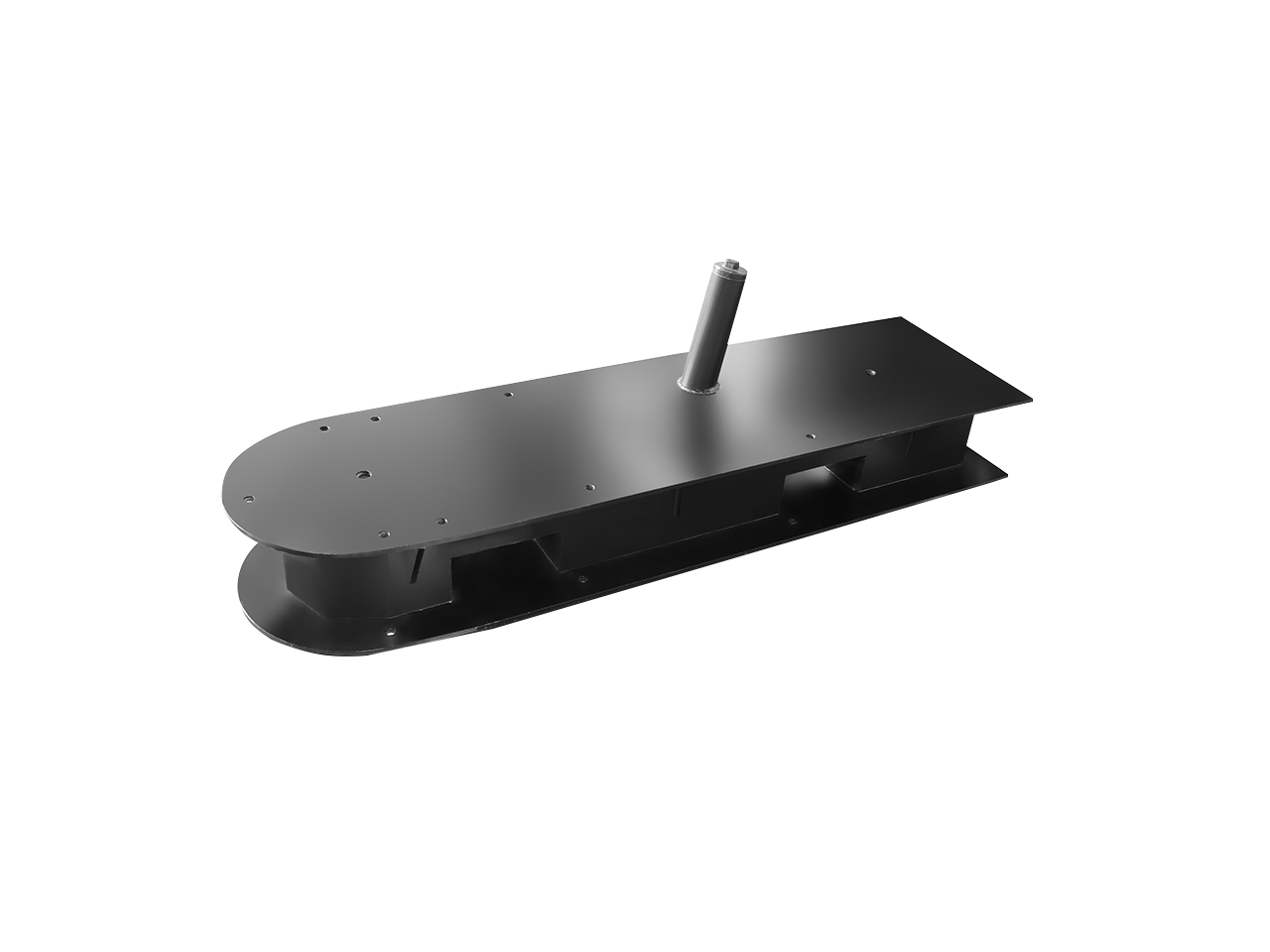

STEEL BASE
STEEL BASE
SPECIAL DIE TYPES ON DEMAND
MODEL
OPERATING SYSTEM
NOMINAL HITTING WEIGHT
HITS PER MINUTE
MAXIMUM HITTING COURSE
MOTOR POWER
DIE SURFACE
ANVIL WEIGHT
WIDTH
LENGTH
HEIGHT
WEIGHT
    kg hits/min mm kW mm kg mm mm mm kg
SPH 50 PNEUMATIC 50 240 185 4.0 150x78 300 730 1750 1450 1000
SPH 60 PNEUMATIC 60 220 220 7.5 150x78 355 760 1840 1680 1300
SPH 70 PNEUMATIC 75 210 220 7.5 150x78 430 820 1950 1800 1600

DIRECT-GEAR MOTORISED GUILLOTINES
